2.0mm Loose Tube Blank Tube For PLC Splitter Assembly

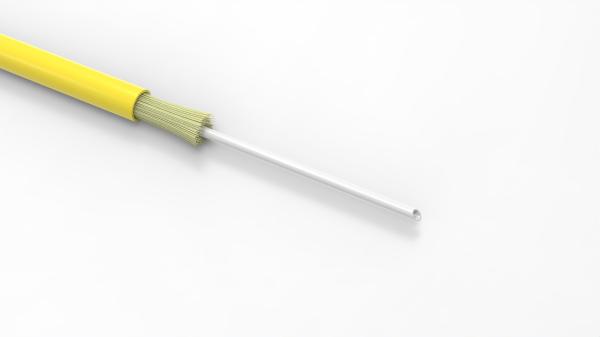

Our loose tube is made of hollow inner tube,a layer of aramid fiber which is used as the force strengthening unit. The outer jacket is extruded with a layer of PVC or LSZH (Low-smoke, halogen-free, flame-retardant) .
Product feature
● Uniform outer diameter of tight-buffered fiber,Excellent stripping performace.
● Good flame retardant properties.
● Stable high and low temperature performance.
● The geometric size of the optical fiber is consistent.
| Cable type | Cable diameter (mm) | cable reference weight (kg/km) | Inner tube outer diameter (mm) | Tensile Strength Long/short term | Crush resistance Long/short term | Bending Radius Dynamic/static |
| Φ1.6mm | 1.65±0.05 | 2.4 | 0.7±0.05 | 40/80 | 100/500 | 60/30 |
| Φ2.0mm | 1.95±0.05 | 3.2 | 0.9±0.05 | 60/100 | 100/500 | 60/30 |
| Φ3.0mm | 2.85±0.05 | 6.2 | 0.9±0.05 | 60/100 | 100/500 | 60/30 |
| Fiber type | Attenuation | Full injection bandwidth | Effective mode bandwidth | 10G Ethernet link length | Minimum bend radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Normal | Max | Normal | Max | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
| Inner tube material | V-PVC Z-LSZH H_HYytrel N-Nylon F:PVDF |
| Inner tube color | White or refer to chromatogram |
| Outer jacket material | V-PVC Z-LSZH |
| Outer jacket color | Yellow or refer to chromatogram |
| Marking&package | Per customer's request or factory standard |
Note:
Delivery length can be customized according to the customer's requirements. Marking &Package is factory standard or per customer's request.
|
|
