    FTTH CATV Fiber Optic Splitter Bare Steel Tube Mini PLC Splitter

    Ask Lasest Price
    Certification : CE, ISO, RoHS
    Supply Ability : 800000pieces/Month
    • Product Details
    • Company Profile

    FTTH CATV Fiber Optic Splitter Bare Steel Tube Mini PLC Splitter

    Mini Bare Steel Tube PLC Fiber Optic Optical Mini PLC Splitter (FTTH CATV telecom)

    Product Description

    Product Parameters

    Technical parameters

    Operating Wavelength1260~1650(nm)
    Fiber TypeG657A1 or as customers' order'
    Port Configuration1x21x41x81x161x321x641x128
    Insertion Loss (dB)3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.023.8/24.2
    Loss Uniformity (dB)0.40.60.81.21.52.02.5
    Polarization Dependent Loss(dB)0.20.20.20.250.30.350.4
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.50.5
    Temperature Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.50.5
    Return Loss (dB)55/50
    Directivity (dB)> 55
    Operating&storage temperature(°C)-40-80

    Order information
    CodeSplitter
    Configuration01020104010801160132016401128
    1x21x41x81x161x321x641x128
    Connector TypeSCLCFCST
    Ferrule TypeUPCAPC
    Fiber TypeG657A1 or customized
    JacketMaterialHytrelLSZH
    ColorYellowBlueBlackOrangeAquaPurpleCustomized
    Diameter (mm)0.92.03.0
    CableInput5070100150Customized
    Length(cm)Output5070100150Customized

    Mini Bare Steel Tube PLC Fiber Optic Optical Mini PLC Splitter (FTTH, CATV, telecom)

    Product Description

    Product profile

    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
    Mini module PLC splitter has stronger fiber protection than bare fiber splitter; which is a miniaturization result of cassette splitter It's mainly used for various connection and distribution boxes or network cabinets.


    Characterstic
    •Excellent Mechanical,Small Size.
    •High Reliability.
    •Low insertion Loss and low Polarization Dependent loss.
    •High channel counts.
    •Excellent Environmental Stability and Widely Used.
    • Connector Type: SC or Customer specified.


    Application
    FTB Deployments(GPON/BPON/EPON).
    •Cable television (CATV).
    •Local area networks (LAN).
    •Test equipment.
    •Passive optical networks(PON).

    No.123456
    ColorBlueOrangeGreenBrownGrayWhite
    No.789101112
    ColorRedBlackYellowVioletPinkAqua


    Mini Bare Steel Tube PLC Fiber Optic Optical Mini PLC Splitter (FTTH, CATV, telecom)Mini Bare Steel Tube PLC Fiber Optic Optical Mini PLC Splitter (FTTH, CATV, telecom)Mini Bare Steel Tube PLC Fiber Optic Optical Mini PLC Splitter (FTTH, CATV, telecom)

    Company Profile

    Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.

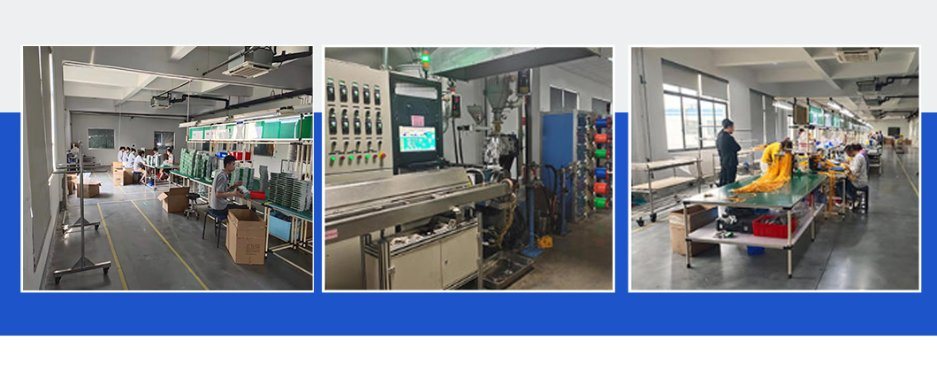

    Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.
    Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.

    Mini Bare Steel Tube PLC Fiber Optic Optical Mini PLC Splitter (FTTH, CATV, telecom)Mini Bare Steel Tube PLC Fiber Optic Optical Mini PLC Splitter (FTTH, CATV, telecom)
